1000m Drone Signal Jammer Uav Signal Blocker Anti-Drone Radio Frequencys Uav Quadcopters Signal Scrambler
Product Description
TSj-DR04 Handhold Drone Signal Jammer Portable UAV Wireless Blockers GPS, WiFi 2.4G, WiFi 5.8g Signal Killer
Specification:
|
Key technical specification: TSj-DR04 | |||
|
Channel |
Output
Port |
America
Frequency |
Average
out-putting power |
|
1 |
1.5G(GPS) |
1580-1620MHz |
40 dBm |
|
2 |
2.4G |
2400-2460MHz |
40 dBm |
|
3 |
5.8G |
5720-5850MHz |
37 dBm |
|
Total
25W, | |||
|
Power supply mode |
Out battery: 24V, 3500mAh; |
|
Battery working time |
45-70 minutes |
|
Working temperature |
-20℃ to +55℃ |
|
Power consumption |
55W |
|
Weight |
2KG , Packing Weight:3.6KG |
|
Size |
277X80X51mm |
|
Panel Antenna |
10dBi Gain |
|
Name |
Portable Gun Shape Jammer |
Power Supply |
External battery DC24V/3500mA |
|
Model |
TX-Q-03 |
Battery Life |
45-70 mins |
|
Brand |
TXtelsig |
Work Reaction Time |
3-5s |
|
Jamming Radius |
500-1000m |
Temperature |
-40℃~70℃ |
|
Jamming Signal |
GPS,WiFi 2.4g 5.8g |
Size |
340*185*47mm |
|
Output |
25W |
Jammer Wight |
1kg, |
|
Power Consumption |
55W |
Battery Wight |
0.8kg |
| Channel | Status | Result |
| 2.4G/5.8G | ON | Drone fored return |
| GPS | OFF | |
| 2.4G/5.8G | OFF | Drone in Pose Mode |
| GPS | ON | |
| 2.4G/5.8G | ON | Drone will be forced landing |
| GPS | ON |

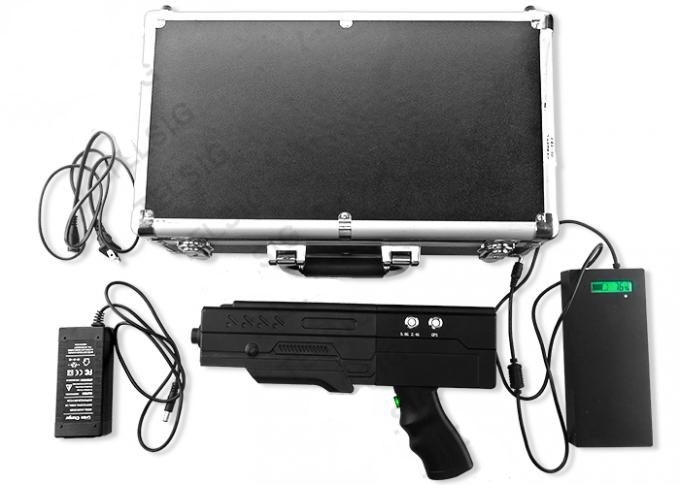

Portable Gun shape UAV jammer
TSj-DR04 gun shape handhold drone jammer has the advantages of light weight and portability, and the power of 25W can easily solve the ordinary drone in the visible range. The external battery is hangable for easy to carry and has an LCD display to know the battery electricity clearly and get ready anytime. The main jamming signals are Wifi 2.4g WiFi 5.8g and GPS (1.5g). There is no adverse effect on the signal around the mobile communication, base station,automobile remote control, police radar and other civilian facilities.
1. Hand-held portable gun design, easy to operate with one hand
2. The shielding distance up to1000m and the drone in the visible range can be easily solved.
3. Fast response only 3 seconds need, for forced landing or returning 20s is enough
4. The external battery can be hanging on the belted, easy to take
5. With power display clearly knows the state of the battery for ready the counter-time
Why Are Drone Jammers Needed?
(1) Consumer and commercial drones come a dizzying array of shape, size, characteristics, features, and prices.That means that drones can also be employed for a huge range of illegal uses including:
- (2) Carrying bombs and other terrorist threatsUse as biological weapon Illegal surveillance
- (3) Drone swarms overwhelming a facility
- (4) Interfere with emergency responders
- (5) Interfere with manned aircraft or airports
- (6) Smuggling contraband into prisons or across borders
- (7) Hacking into sources such as data centers
What will be happen?
- (1) Multiple drone incidents at Airport, Airport drone recording incidents of drones near passenger planes.
- (2) Drones dropping weapons, escape kits, drugs and mobile phones into prison, assisting prisoners to escape, and smuggling drugs into prison.
- (3) Drones used by fans to get illegal spoilers for TV or film series.
- (4) Drones used by paparazzi for celebrities' privacy invasion.
- (5) Drones used to detect and record technical and business confidential of the supplier.
Application:
Mainly Applied To Prisons, Airports, Scientific Research Centers, Detention Houses, Interrogation Rooms, Courthouses, Labor Camp, All Kinds Of Military Important Places, Forbid Aerial Photography By Use Of Drone, Etc
- Specification:
- Large Jamming Range: 500-1000 Meter,Battery working time 45-70 minutes,Power supply mode Out battery: 24V, 3500mAh; Or External battery,Weight 2KG , Packing Weight:3.6KG,Size 277X80X51mm
