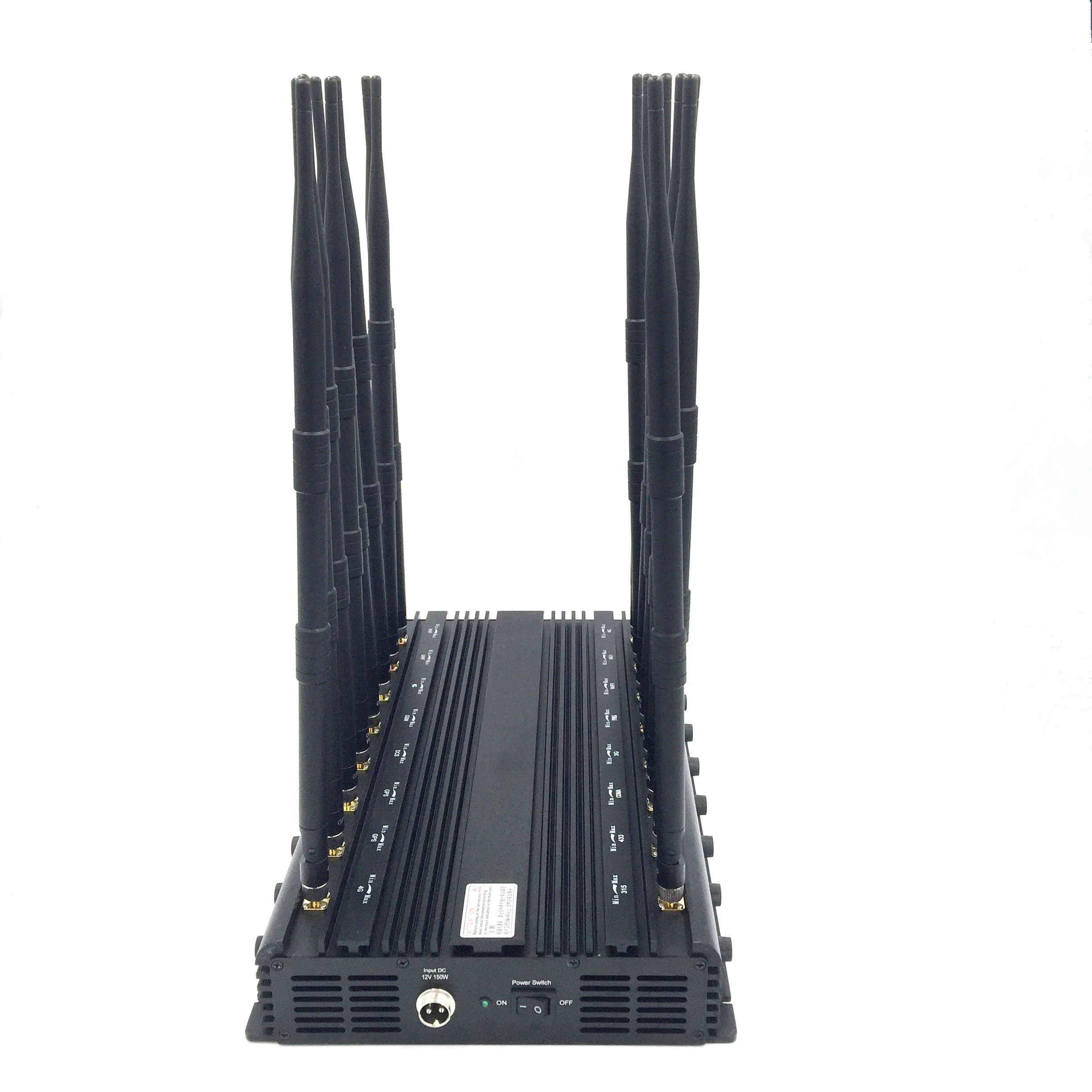

40W Signal Jammer Adjustable 16 Antennas All Bands Signal Isolator, Shielding Radius Up to 40M
Specification:
1) TSjA16-A:Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1L2L3L4L5 +Walkie-Talkie UHF/VHF+ Wireless
Camera 1.2GHz+LOJACK+315+433
2) TSjA16-B: Full Bands Cellphone 4G/3G/2G +WiFi2.4G5.8G+ GPSL1L2L5 + Full Bands Walkie-Talkie & Wireless
2) TSjA16-B: Full Bands Cellphone 4G/3G/2G +WiFi2.4G5.8G+ GPSL1L2L5 + Full Bands Walkie-Talkie & Wireless
Headset/Microphone+LOJACK
(2) Output Power：Total 40W，1-3W each band
(3) Jam Radius：2-40meters
(4) Power Supply：AC110-240V to DC12V
(5) Cooling System：High efficiency aluminum alloy radiator, Build-in 4 cooling fan
(6) Working Time：Not-stop Working
(7) Product Size：410x 238x 60 mm（not Include Antenna）
(8) Product Weight: appr.6.5kg
(9) Package Contents：Jammer Host x 1, AC adapter x 1,antenna x16,Car storage battery cable x1
Product Description
This is designed with 16 Antennas Full Bands 130Mhz-6GHz for mobile phone GSM 3G 4GLTE signal which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. all-in-one jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters
Advantages
(1) Full bands 16 chancel design, Customized for special frequency band
(2) High output power, Total up to: 40W , jamming up to 40m (Still depends on the strength signal in given area)
(3) External Omni-directional antennas all the TX frequency covered down link only
(4) With Car storage battery Charger DC12V can be used in car
(5) Built-in good cooling system inside, Working non-stopped
(6) Can adjust or turn off any single band without influencing the other bands operation
OEM Customized Service
Customized for special frequency band , Wi-Fi5.8G 3.6GHz, etc
Silkscreen OEM service can be offered
Application
(1) It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
(2) For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
(3) Jam Radius：2-40meters
(4) Power Supply：AC110-240V to DC12V
(5) Cooling System：High efficiency aluminum alloy radiator, Build-in 4 cooling fan
(6) Working Time：Not-stop Working
(7) Product Size：410x 238x 60 mm（not Include Antenna）
(8) Product Weight: appr.6.5kg
(9) Package Contents：Jammer Host x 1, AC adapter x 1,antenna x16,Car storage battery cable x1
Product Description
This is designed with 16 Antennas Full Bands 130Mhz-6GHz for mobile phone GSM 3G 4GLTE signal which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. all-in-one jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters
Advantages
(1) Full bands 16 chancel design, Customized for special frequency band
(2) High output power, Total up to: 40W , jamming up to 40m (Still depends on the strength signal in given area)
(3) External Omni-directional antennas all the TX frequency covered down link only
(4) With Car storage battery Charger DC12V can be used in car
(5) Built-in good cooling system inside, Working non-stopped
(6) Can adjust or turn off any single band without influencing the other bands operation
OEM Customized Service
Customized for special frequency band , Wi-Fi5.8G 3.6GHz, etc
Silkscreen OEM service can be offered
Application
(1) It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
(2) For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
| Key technical specifications: TSjA16-A | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | VHF | 130-190MHz | 35dbm / 3W |
| 2 | UHF or CDMA450 | 400-470 or 450-470MHz | 35dbm / 3W |
| 3 | RC315 | 315MHz | 35dbm / 3W |
| 4 | RC433 | 433MHz | 35dbm / 3W |
| 5 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W |
| 6 | 4G2 LTE 1700 | 1710-1780MHz | 33dbm / 2W |
| 7 | GSM or CDMA | 925-960 or 850-894MHz | 35dbm / 3W |
| 8 | DCS or PCS | 1805-1880-1920-1990MHz | 33dbm / 2W |
| 9 | 3G | 2110-2170MHz | 33dbm / 2W |
| 10 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W |
| 11 | Wi-Fi 2.4G+4G2300 | 2300-2500MHz | 30dbm / 1W |
| 12 | GPSL1 | 1570-1580MHz | 33dbm / 2W |
| 13 | GPSL2+L5 or Wireless Camera 1 | 1170-1280MHz | 33dbm / 2W |
| 14 | GPSL3+L4 or Wireless Camera 2 | 1280-1390MHz | 33dbm / 2W |
| 15 | Wireless Camera 3 | 1000-1170MHz | 33dbm / 2W |
| 16 | LOJACK& XM radio | 167-175MHz | 35dbm / 3W |
| The below frequencies you can instead of above one to combined 16 bands | |||
| Option | WIFI5.2G | 5100-5500MHz | 30dbm / 1W |
| WIFI5.8G | 5500-5900MHz | 30dbm / 1W | |
| WiFi3.6G | 3500-3600MHz | 30dbm / 1W | |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 410x 238x 60mm（not Include Antenna） | |||
| Packing size: 49*44*15cm Net weight: 6kg Gross weight: 7.0kg | |||
| Total power:40W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters | |||
| Warranty: one year from delivery date | |||
| Key technical specifications: TSjA16-B | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | VHF1 | 130-190MHz | 35dbm / 3W |
| 2 | UHF2 | 190-300MHz | 35dbm / 3W |
| 3 | UHF3 | 300-400MHz | 35dbm / 3W |
| 4 | UHF4 | 400-500MHz | 35dbm / 3W |
| 5 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W |
| 6 | 4G2 LTE 1700 | 1710-1780MHz | 33dbm / 2W |
| 7 | CDMA | 851-894MHz | 35dbm / 3W |
| 8 | GSM | 925-960MHz | 35dbm / 3W |
| 9 | DCS&PCS | 1805-1990MHz | 33dbm / 2W |
| 10 | 3G | 2110-2170MHz | 33dbm / 2W |
| 11 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W |
| 12 | Wi-Fi 2.4G+4G2300 | 2300-2500MHz | 30dbm / 1W |
| 13 | Wi-Fi 5.8G | 5725-5850MHz | 30dbm / 1W |
| 14 | GPSL1 | 1570-1580MHz | 33dbm / 2W |
| 15 | GPSL2+L5 | 1170-1280MHz | 33dbm / 2W |
| 16 | LOJACK& XM radio | 167-175MHz | 35dbm / 3W |
| The below frequencies you can instead of above one to combined 16 bands | |||
| Option | WIFI5.2G | 5100-5500MHz | 30dbm / 1W |
| WIFI5.8G | 5500-5900MHz | 30dbm / 1W | |
| WiFi3.6G | 3500-3600MHz | 30dbm / 1W | |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 410x 238x 60mm（not Include Antenna） | |||
| Packing size: 49*44*15cm Net weight: 6kg Gross weight: 7.0kg | |||
| Total power:40W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters | |||
| Warranty: one year from delivery date | |||
Shipping Terms:
(1) Items will be sent to all the countries over the world.
(2) This package will be sent by Economic Express shipping.
(3) Items will be checked carefully before sent out.
(4) We will use air bubbles to wrap the items carefully.
- Specification:
- Output Power：Total 40W，1-3W each band,Jam Radius：2-40meters,Power Supply：AC110-240V to DC12V,Cooling System：High efficiency aluminum alloy radiator, Build-in 4 cooling fan,Working Time：Not-stop Working,Product Size：410x 238x 60 mm（not Include Antenna）,Product Weight: appr.6.5kg
