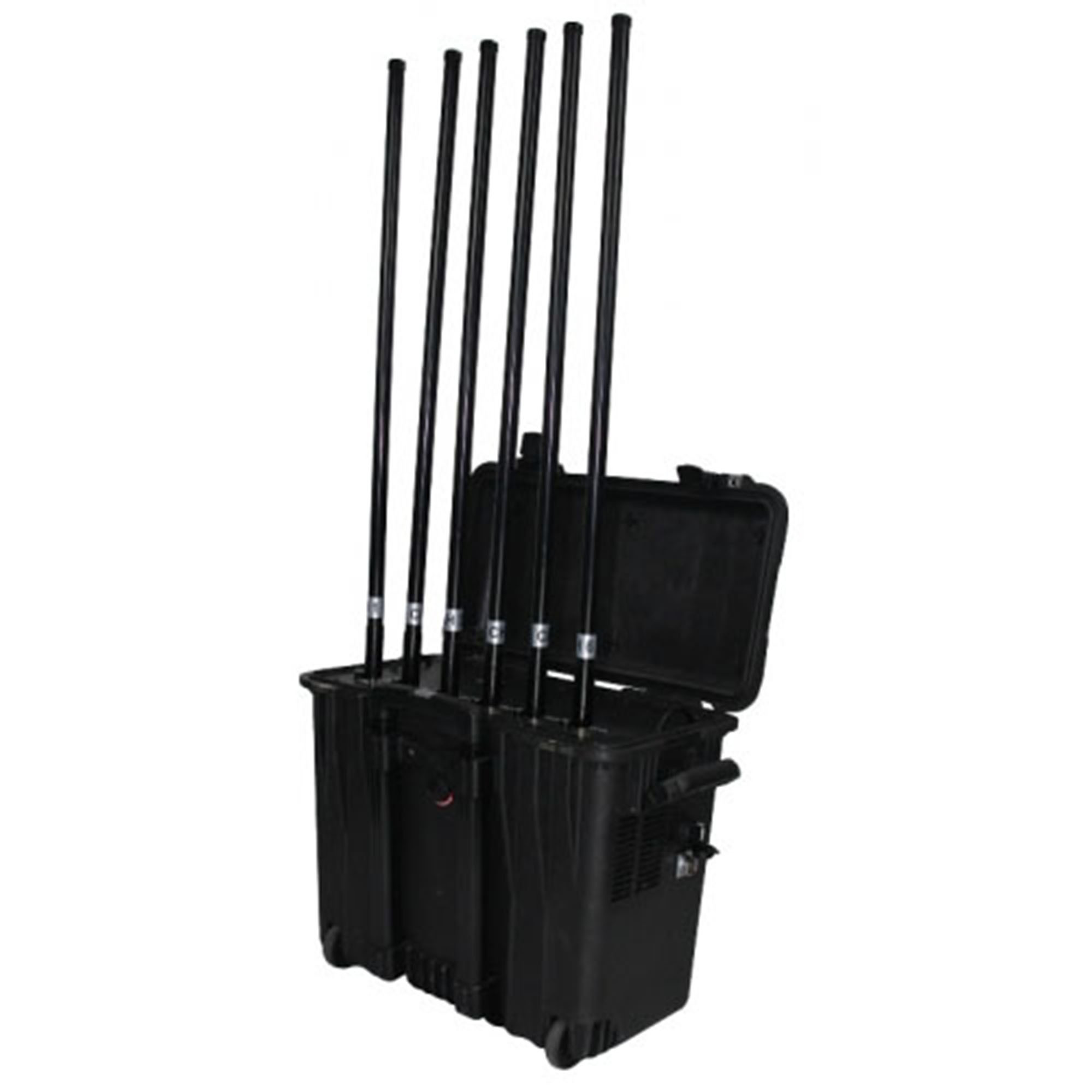

Powerful 220W Signal Jammer Draw-bar box Portable High Power Mobile Phone 4GLTE WIFI Isolator with Output Power Jamming up to 1000m WIFI Blocker Jamming up to 100m

stars, based on 2reviews
$17280.00now$6910.00 piece
1000items available
Contact Us

Specification:

(1) Jam Signal Type：
1: TSjLM6-W: Mobile phone 3G/2G GSM CDMA DCS 4GLTE +WIFI2.4G Signals
2: TSjLM6-G: Mobile phone 3G/2G GSM CDMA DCS 4GLTE +GPSL1 Signals
3: TSjLM6-B: Remote control bomb Signals 130--800MHz
(2) Output Power：Total 220W，30-50W each band
(3) Jam Radius：100-1000 meters (GPS signal for 1000m)
(4) Power Supply：AC110-240V to DC27V
(5) Cooling System：High efficiency aluminum alloy radiator+ 6 X cooling fans
(6) Working Time：Not-stop Working(Build-in AC power DC27V and Battery 27V40Ah working 1.5hours)
(7) Product Size：Pelican case 1440: 500*305*457mm（not Include Antenna）
(8) Product Weight: appr.30kg ( for OMNI antennas)
(9) Package Contents：Jammer Host x 1, Battery Charge x 1, antenna x6,

Product Description
The one is professional draw-bar box Pelican 1440 portable High power bomb or mobile phone Isolator for 4G cellular phones, Cellphone 3G 4GLTE/WIMAX Wi-Fi UHF VHF Signal Isolator which are currently presented on the market. Also is High RF power Drone Isolator model with 6 antennas 6 cooling fan which bring us a strong jamming ability. Build-in battery can works 1.5 hours.

Advantage
(1) Output power total 220w, You can choose high gain 5-10 dbi OMNI or Panel directional antennas, shielding 100-1000m,Still depends on the strength signal in given area.
(2) Each module is designed with five indication lights, to show Power, Run and Alarm (Perfect VSWR Alarm System, fully protected circuit in case of disconnection of antennas)
(3) Each unit can jam up to 6 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0)
(4) 100% safe VSWR over protection (isolator) for each modular
(5) Big aluminum alloy shell and 6 pieces cooling fans, not-stop to work
with Pelican case 1440 ,carry out ,
(6) Build-in Battery 27V40Ah continue working 1.5hours, Battery Power and charger stative display via LED screen
(7) Selection of antennas to provide more flexibility regarding jamming coverage

OEM Customized Service
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi 2.4G,5.8G,3.6GHz, GPSL1-L5 and more
Silkscreen OEM service can be offered.

Application
(1) It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
(2) For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument

Key specifications：TSjLM6-W
ChannelOutput PortFrequency rangeAverage out-putting power
1CDMA or GSM851-894 or 925-960MHz47dbm / 50W
2DCS/PCS1805-1990MHz44.7dbm / 30W
33G2110-2170MHz44.7dbm / 30W
44GLTE700-803 or 790-862MHz47dbm / 50W
54G WIMAX2500-2690 or 2300-2400MHz44.7dbm / 30W
6WIFI2.4G2400-2500MHz44.7dbm / 30W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V)      Battery:27V40Ah
Dimension: (length,width, height )  500*305*457mm(Not include antenna)
Package Size: 700 x 500 x 600mm
N.W:25kg       G.W:25Kg + 5kg antennas =30kg
Working temperature: -30~60℃
Total power:220W
Shielding radius: (100--300) meters At -75dBm
Still depends on the strength signal in given area
Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP Antenna：   Dimension: (length, width, height,): 500x 30 x 30mm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:180º      V:20 º
Panel Directional Antenna：   Dimension: (length, width, height,): 21x 18 x 5cm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:60-90º      V:20-30º
Basic station Directional Antenna：   Dimension: (length, width, height,): 125x 25 x 8.5cm
N.W:10Kg    Gains:12-20dbi      VSWR》1.5         H:60-90º      V:20-30º

Key specifications：TSjLM6-G
ChannelOutput PortFrequency rangeAverage out-putting power
1CDMA or GSM851-894 or 925-960MHz47dbm / 50W
2DCS/PCS1805-1990MHz44.7dbm / 30W
33G2110-2170MHz44.7dbm / 30W
44GLTE700-803 or 790-862MHz47dbm / 50W
54G WIMAX2500-2690 or 2300-2400MHz44.7dbm / 30W
6GPSL11570-1610MHz44.7dbm / 30W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V)      Battery:27V40Ah
Dimension: (length,width, height )  500*305*457mm(Not include antenna)
Package Size: 700 x 500 x 600mm
N.W:25kg       G.W:25Kg + 5kg antennas =30kg
Working temperature: -30~60℃
Total power:220W
Shielding radius: (100--300)(GPS1500m)  meters At -75dBm
Still depends on the strength signal in given area
Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP Antenna：   Dimension: (length, width, height,): 500x 30 x 30mm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:180º      V:20 º
Panel Directional Antenna：   Dimension: (length, width, height,): 21x 18 x 5cm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:60-90º      V:20-30º
Basic station Directional Antenna：   Dimension: (length, width, height,): 125x 25 x 8.5cm
N.W:10Kg    Gains:12-20dbi      VSWR》1.5         H:60-90º      V:20-30º


Key specifications：TSjLM6-B
ChannelOutput PortFrequency rangeAverage out-putting power
1VHF1130-190MHz44.7dbm / 30W
2VHF2190-300MHz44.7dbm / 30W
3UHF2300-400MHz44.7dbm / 30W
4UHF3400-500MHz44.7dbm / 30W
5UHF4600-700MHz44.7dbm / 30W
6UHF5700-800MHz44.7dbm / 30W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V)      Battery:27V40Ah
Dimension: (length,width, height )  500*305*457mm(Not include antenna)
Package Size: 700 x 500 x 600mm
N.W:25kg       G.W:25Kg + 5kg antennas =30kg
Working temperature: -30~60℃
Total power:180W
Shielding radius: (100--300) meters At -75dBm
Still depends on the strength signal in given area
Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP Antenna：   Dimension: (length, width, height,): 500x 30 x 30mm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:180º      V:20 º
Panel Directional Antenna：   Dimension: (length, width, height,): 21x 18 x 5cm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:60-90º      V:20-30º
Basic station Directional Antenna：   Dimension: (length, width, height,): 125x 25 x 8.5cm
N.W:10Kg    Gains:12-20dbi      VSWR》1.5         H:60-90º      V:20-30º

Shipping Terms:
(1) Items will be sent to all the countries over the world.
(2) This package will be sent by Economic Express shipping.
(3) Items will be checked carefully before sent out.
(4) We will use air bubbles to wrap the items carefully.

Specification:
Output Power：Total 220W，30-50W each band,Jam Radius：100-1000 meters (GPS signal for 1000m),Power Supply：AC110-240V to DC27V,Cooling System：High efficiency aluminum alloy radiator+ 6 X cooling fans,Working Time：Not-stop Working(Build-in AC power DC27V and Battery 27V40Ah working 1.5hours),Product Size：Pelican case 1440: 500*305*457mm（not Include Antenna）,Product Weight: appr.30kg ( for OMNI antennas)
