Signal jammer Outdoor IP64 high power long distance 1000 to 3000m UAV signal jammer shield device system with IP network monitoring

Dear customer

(1)  We could supply customized service by your detail requirements about frequencies setting. All the Frequency modules we can mix very flexibly.

(2) Please contact us online or Email(todaysignal@hotmail.com) for the exact price before buying.

Product Description

1. It will force the flying UAV drone out of control, hover/land/return home, and stop data transmission to the ground by interfering the UAV control signal of WIFI 2.4G 5.8G and GPS etc.

2. UAV status: searching network, no signal, no service, etc; remote control loses action function;

the ground can not receive photo and video of the UAV; UAV will be forced landing, hovering or returning home

UAV can not act as remote control instructions

3. We can produce it with 5.8G RF jammer module 40W or 50W, other module over 100W  as your requirment.

Feature

1. Ultra high power 190W, combined with high gain directional antenna for each band

     to shield radius 1000 to 3000 meter area (depends on real environment and signal strength)

2. 3 channel or More channel signal shielding IP64 level main control engine, or other customized

     frequency 433MHz, 868MHz, 912MHz, 916MHz, GPS/Glonass navigation signal,

3. Seperate fequency RF module and Single Switch control to exactly shield specific signal

    also for customized frequency and easy maintainance

4. Efficient heat dissipation system: fast blow heat away to ensure long time operation

5. Optional monitoring software monitoring for client :  can support PC operation, phone APP control,

     drone detecting integrated system

6. VSWR protection: use power supply protection box, to ensure stable and safe power supply

7. Huawei latest high tech thunder protection box

8. Only influence downlink; No influence to base station

Technical Data:

Antenna Data:

We could supply customized service by your detail requirements about frequencies setting. All 4 Frequency modules we can mix very flexibly.

CDMA 800:	851-894MHz
GSM 900:	925-960MHz
DCS 1800:	1800-1880MHz
PHS 1900:	1920-1990MHz
3G 2100(UMTS):	2110-2170MHz
WIFI 2.4G Bluetooth:	2400-2500MHz
WiFi3.6G:	3500-3600MHz
Wi-Fi5.2G:	5100-5500MHz
WIFI 5.8G	5725-5850MHz
4G/LTE 700M:	725-770MHz(US)
4G/LTE 800M:	790-826MHz(EU)
4G Wimax:	2300-2400MHz(US)
4G Wimax:	2620-2690MHz(EU)
GPS/L1:	1500-1600MHz
GPS/L2:	1200-1300MHz
GPS/L3:	1300-1400MHz
GPS/L4:	1100-1200MHz
VHF:	135-174MHz
UHF:	400-470MHz
Lojack:	167-175MHz
RF315:	315MHz
RF433:	433MHz
RF868:	868MHz

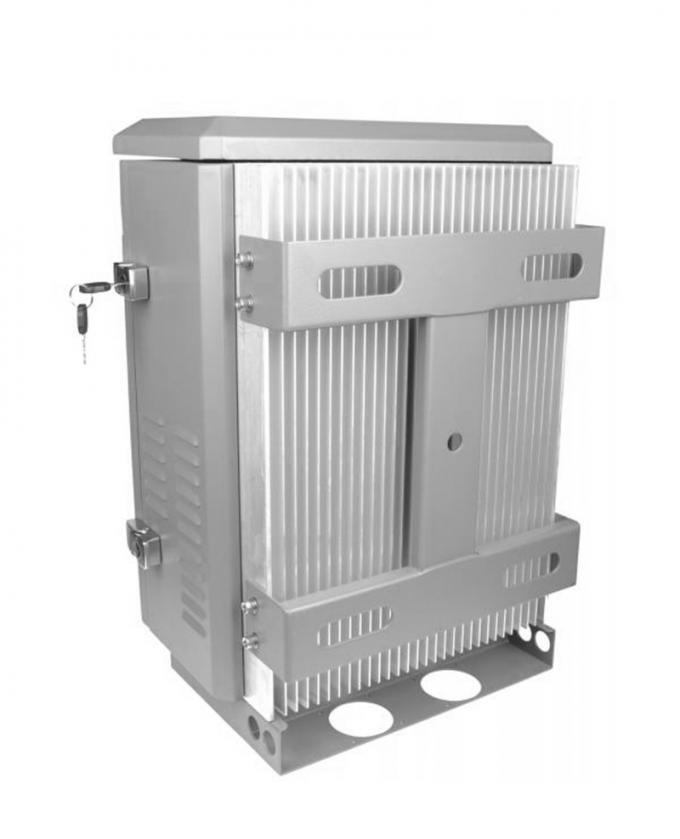

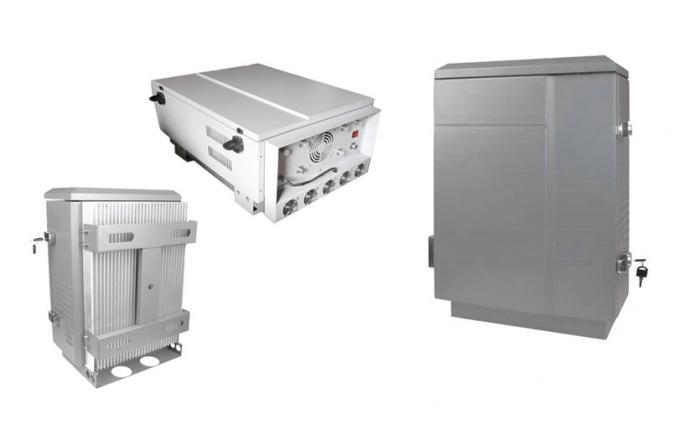

Main Engine Case

1. IP64 level reoxidation alluminum alloy design, Hinge lock protection for easy management and and

    anti-damage

2. N type connector(customized) to link with Antenna

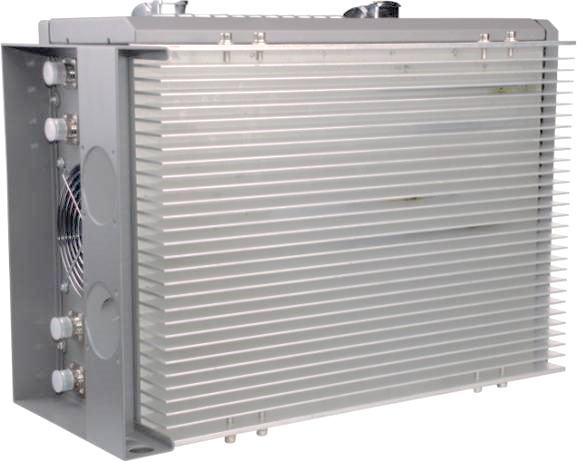

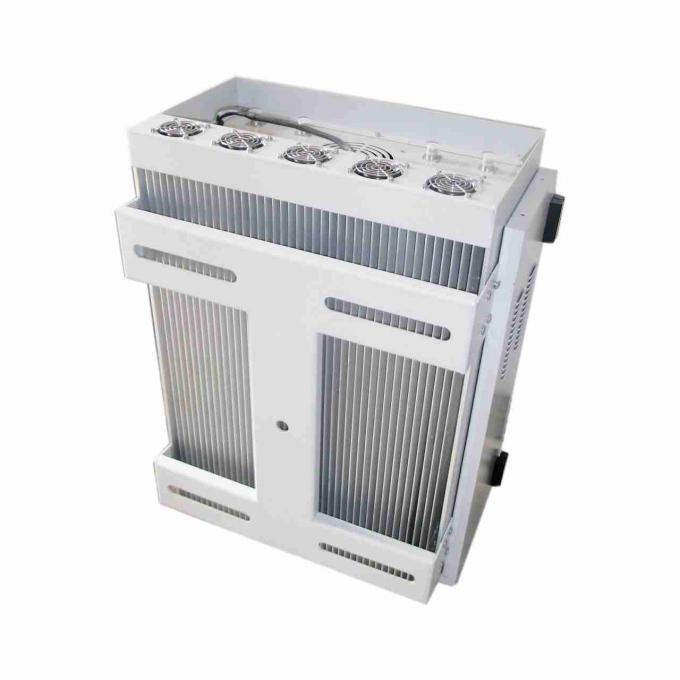

3. Efficient heat dissipation system with built in fan and fin

4. Main switch to control the complete device work

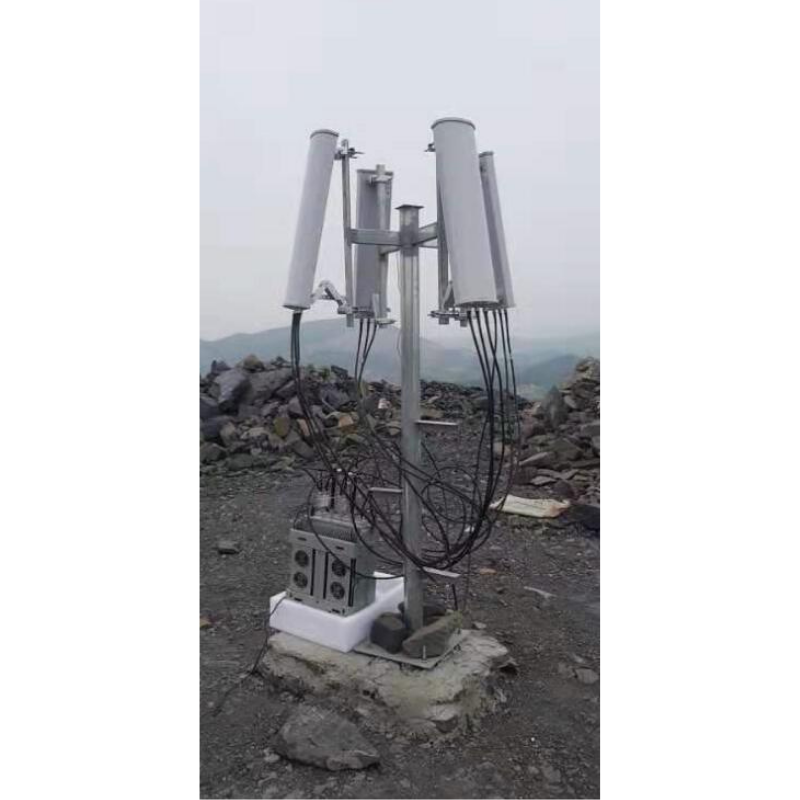

5. Optional choice for directional or omni fiberglass antenna

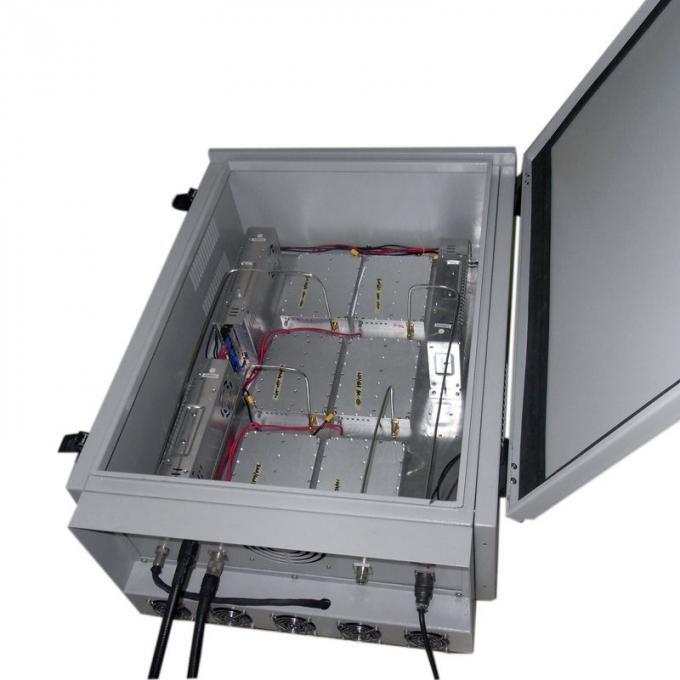

6. Seperate module design, For single frequency control

7. LED indicates the working-on status

8. Over temperature and VSWR protection with power supply protection box

9. Please Ensure the anntenna is connected before turning power on

10. Slow set up circurity for long term reliabitly
