(1) We can produce this jammer as your performance requirements.
(2) Please contact us online or Email(firstname.lastname@example.org) for the exact price before buying.
(1) Frequency Range: 20-6000MHz
(2) Cover Radius: 300-600 Meters@-75dbm
(3) Total RF Power: 950Watt
(4) Jammer Module Number: 10
(5) Channel Frequency Number: 17Bands, Max: 24Bands
(6) Cooling System: Systematic Smart Cooling system
(7) System Protection: VSWR, Over-Voltage, Over-current
(8) Jamming Source: Digital Signal Source Synthesize Technology Adjust Frequency and Output Watt
(9) Remote Control: Full System Operation Control With Battery Led Display
(10) Antenna Type: High Gain Omni Directional Antennas
(11) Number of Antennas: 10
(12) External Battery: 28.5V, 95AH
(13) Jammer Module: Each Jammer module withf antenna can be used as signal jammer. All modulesf are controlled separately.
(14) Jammer Size: 65x51x36cm
(15) Host Weight: 51kg
(16) Operationg Temperature: -35 to +80Celsius
(17) Operationg Humidity: Up to 80%
Advantages TSj-DP10001 is a Bomb Jammer,IED Jammer, it can neutralize / prevent deadly criminal acts such as radio controlled Car Bombs, roadside bombs, ambush by remote IED attacks, assassinations, and remote controlled terrorist events. In addition to implementing High Power IED Jammers and Convoy Jammers.
(1) Using DDS Digital FM interference Technology: DDS:Direct Digital Synthesized Technology, broadband noise elimination and frequency sweeping DDS Digital integration Technology was adopted
(2)Frequency range and power can be set according to the site.The interference effect has phase continuity in time (up to the order of us), concentration in energy, pertinence in target and real-time tactical effect, and the interference effect is much better than the previous simulation interference method；
(3)Within 20-6000mhz frequency band, the designated frequency band can be customized, and multiple cases can be extended according to customer requirements；
(4)Modular design of internal structure, arbitrary combination and adjustment of interference blocking frequency, each module can be individually switched, with fault alarm function；
(5)Each module has RS485-USB interface, and each module can output 4 frequency bands at the same time.A total of 40 frequency bands can be output by 10 modules.Especially suitable for targeted or selective interference；
(6)Each module can be started/closed separately, and efficient frequency division is adopted, so as to achieve the best interference effect on different frequency signals.
(7)Towed box type design, can be installed in the car, can also be used with the car replacement site, temporary installation and use..
(8) Bomb Detonating and confidence leaking, resulting from Road-side Remote Control Improvised Explosive Device (RCIED) have been tremendous challenge in many parts of the world.
(1) TSj-DP10001 Bomb Jammer,IED Jammer can neutralize / prevent deadly criminal acts such as radio controlled Car Bombs, roadside bombs, ambush by remote IED attacks, assassinations, and remote controlled terrorist events. In addition to implementing High Power IED Jammers and Convoy Jammers.
(2)TSj-DP10001, High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
(3)TSj-DP10001 can cover, continuously and simultaneously, all the RF communication Frequencies 20MHz-6000MHz. It will be the best solution to defend VIP convoy for vehicle mounted and some other big area jamming quickly to be set up, like military base, important sports events and international summits and etc.

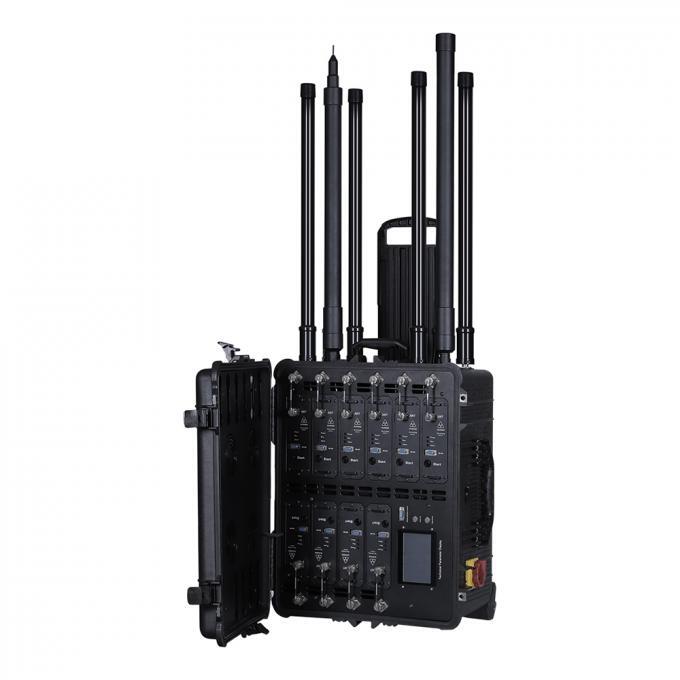

(4)TSj-DP10001, Fully portable multi-band DDS Jamming system, is designed with a ruggedized trolley type case, highly mobility. This device is configured with 10 different jamming modules, the jamming frequency can be more than 24Bands. ten jamming frequency modules can be up to 950watt output power maximum.
(5)TSj-DP10001 is very easy to be installed and operated. The device can be powered by AC mains or a suitable DC power source. The general design of the system meets military requirements and international quality standards.
