Uav Drone Signal Jammer Blocker signal Drone Cellphone Wi-Fi Bluetooth C-Ied Blocker Jammer Gun
Product Description
The shield drone Jammer is independently developed, produced and sold by our company. It prevents illegal drones effectively. This machine adopts 3 channel output, which can shield regular drone single (2.4G/5.8G, GPS) let them returning or forced landing, the control range is up to 2 kilometers.
Specification:
Key technical specification: TSj-DR04 | |||
Channel |
Output
Port |
America
Frequency |
Average
out-putting power |
1 |
1.5G(GPS) |
1580-1620MHz |
40 dBm/10W |
2 |
2.4G |
2400-2460MHz |
40 dBm/10W |
3 |
5.8G |
5720-5850MHz |
37 dBm/5W |
Total
25W, |
Specifations |
|
Brand |
TSj-DR05 |
Model No. |
TSj-DR05 |
Power supply mode |
AC100-220V, DC:24V |
Battery working time |
45-70 minutes |
Working temperature |
-40℃ to +70℃ |
Power consumption |
55W |
Output Power |
25W |
Packing weight: |
1.5KG |
Size |
277X80X51mm |
Jamming range |
500-1000meter |
Panel Antenna |
10dBi Gain |
1. With imported chips, using ultra-high speed sweeping technology to generate multiple bandwidth signals
2. Wideband ultra-high gain integrated antenna and built-in battery design, easy to carry and operate
3. With international technology of secondary oxidation and wear resistance, aluminium shell helps for intelligent temperature controlling and cooling
4. Effective jamming distance is 800-1000 meters, depending on the distance of more than 100 meters between remote control and UAV.
5. There is a power switch in the visible part of the body, including a power indicator, which can be operated directly by one hand.
6. Independent design of control switch, aiming at stopping peeping, driving away and forcing to land
Instructions

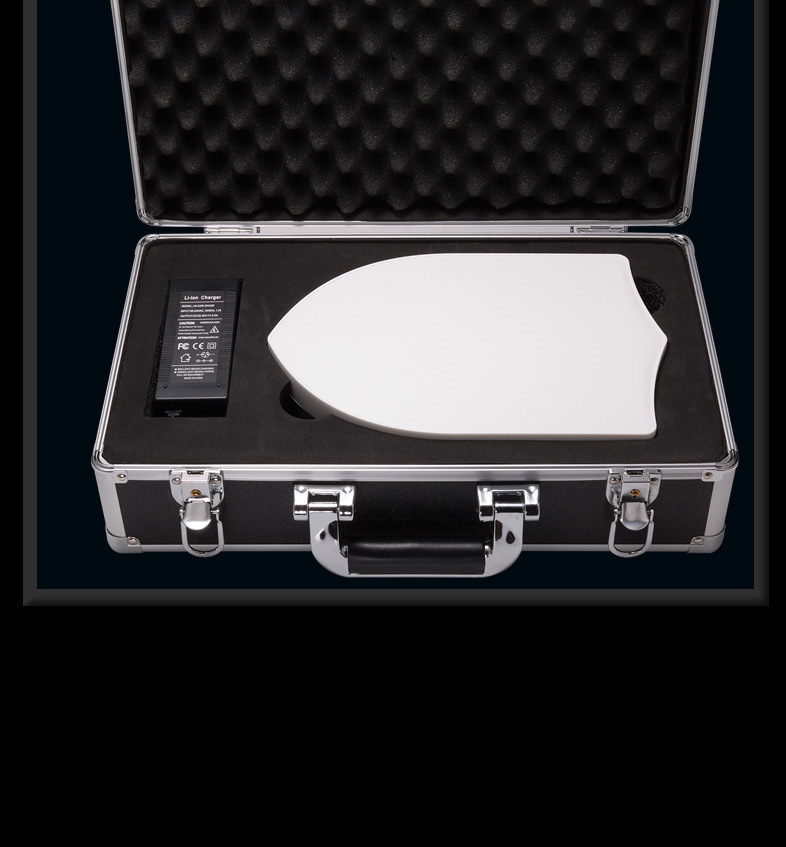

1. Check whether the accessories are complete when you open the box and take out the device.
2. Make sure the device is fully charged on the first use, red light charging, green light full.
3. Easily using: face to UAV and press the switch.
Press 2.4G and 5.8G buttons, aiming at stopping peeping, force UAV to returning.
Press GPS button the UAV in posture mode
Press all the buttons aiming at force UAV landing
Channel |
Status |
Result |
2.4G/5.8G |
ON |
Drone will return back automatically |
GPS |
OFF |
|
2.4G/5.8G |
OFF |
Drone in Pose Mode |
GPS |
ON |
|
2.4G/5.8G |
ON |
Drone will be forced landing |
GPS |
ON |

What will be happen?
- (1) Multiple drone incidents at Airport, Airport drone recording incidents of drones near passenger planes.
- (2) Drones dropping weapons, escape kits, drugs and mobile phones into prison, assisting prisoners to escape, and smuggling drugs into prison.
- (3) Drones used by fans to get illegal spoilers for TV or film series.
- (4) Drones used by paparazzi for celebrities' privacy invasion.
- (5) Drones used to detect and record technical and business confidential of the supplier.
Application:
Mainly Applied To Prisons, Airports, Scientific Research Centers, Detention Houses, Interrogation Rooms, Courthouses, Labor Camp, All Kinds Of Military Important Places, Forbid Aerial Photography By Use Of Drone, Etc

- Specification:
- Power supply mode AC100-220V, DC:24V,Battery working time 45-70 minutes,Working temperature -40℃ to +70℃,Power consumption 55W,Output Power 25W,Size 277X80X51mm
